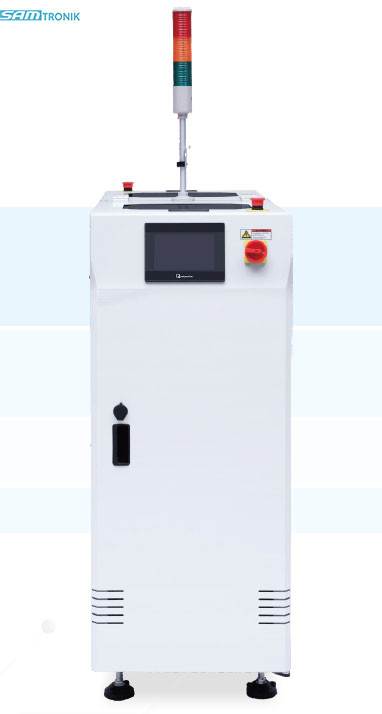

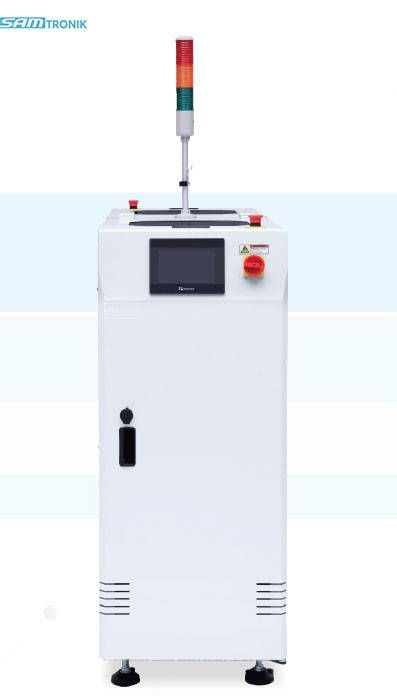

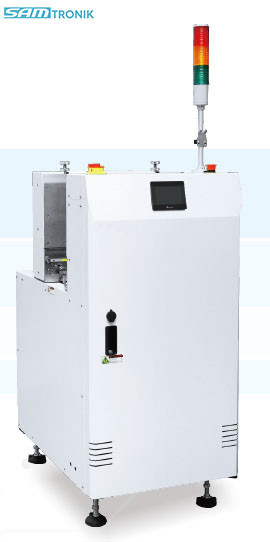

SMB-3A065L Vacuum bare board loader

Categories	PCB Loader & Un-Loader
Brand	SAMTRONIK
Model	SMB-3A065L
Condition	New
Voltage	220V
Weight	200kg
Dimension(LWH)	500mm x 889mm x 1250 mm
Certification	CE
Warranty	one year warranty
After-sales Service Provided	Engineers available to service machinery overseas
Max PCBs Capacity	400PCS
PCB Feed time	Approx 10 seconds
Air supply	4-6 bar
Download
Update Time	Dec 4,2024

Detail Information

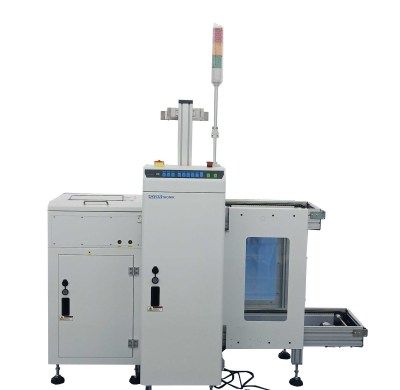

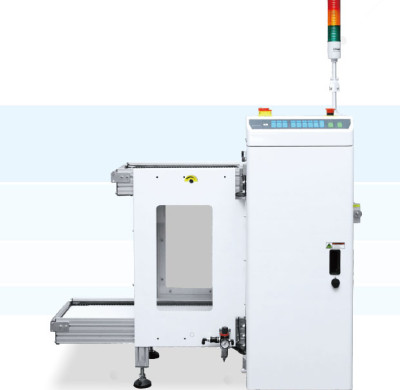

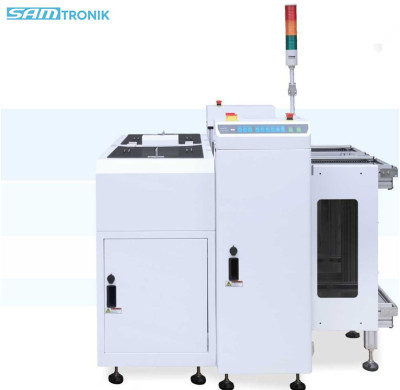

PCB Loader and unloader

Feature:

1.PLC program controller.

2.Aluminium structure, heavy bottom design to prevent shift.

3.Pass-through mode provided.

4.Only taken 10 seconds to change product line.

5.Soft touch LED control panel.

6.Nozzle position adjustable , make sure PCB board clamp .

7.SMEMA compatible.

Technique Parameter :

Description	Used for loading PCB from the Magazine
Time Feed PCB	Approx. 10 seconds or Specify
Max PCBs Capacity	400pcs (0.6mm thickness PCB)
Power Source	220VAC 50/60HZ
Air Pressure & Consume	4-6 bar, Max 10ltr/min
PCB Thickness	0.6mm
