Name: Pneumatic Stencil Cleaner -SME-750
Brand: SAMTRONIK
SKU: 18138202
Rating: 4.75 (10 reviews)

Manufacturer of high-end SMT machines

Factory Commendation

Language:

English

Home / All / SMT Cleaning Machine / Stencil cleaning Machine /

Pneumatic Stencil Cleaner -SME-750

Categories	Stencil cleaning Machine
Brand	SAMTRONIK
Model	SME-750
Stencil size	750mm(L) ×750mm(W) × 40mm(H)as max
Liquid tank capacity	40L（as max）
Clean time	3-5 min（solder paste stencil）
Net weight	230Kg
FOB port	Shenzhen
Terms of Payment	L/C, D/A, D/P, Western Union, T/T
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

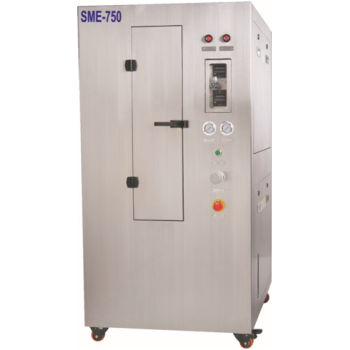

Pneumatic Stencil Cleaner -SME-750

Features：

1, SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.

2, All liquid pipes are SUS304, no plastic pipes.

3, Only driven by compressed air, no use electric power at all.

4, One button easy operation, clean and dry complete automatically.

5, Patent 360°rotate spray rods on both sides , ensure good cleaning quality and stable stencil tension.

6, Liquid recycle use, low consumption.

7, Inner-lock safety door and safety valve, once open, machine will be stopped immediately.

8, 3-level precise liquid filtering system. Liquid used repeatedly.

9, Super well-known Pneumatic parts from all over the word manufactures.

10,Modular design, easy maintenance.

Description:

One key operation; wash+rinse process are completed automatically.Large filter cartridge，sealed rotatory mechanism, powerful cleaning result； Double side stencil clean, stencil tension not affected.

Standard equipped with solvent add in and discharge function. Solvent add in and discharge very convienent.

Super wel-known pneumatic parts guarantee a stable, reliable and high quality machine and good clean result.

Specifications:

S/N	ITEM	SPEC	REMARKS
1	Stencil size	750mm(L) ×750mm(W) × 40mm(H)as max
2	Liquid tank capacity	40L（as max）
3	Wash method	360°double side rotary nozzles liquid spray wash
4	Dry method	360°double side rotary nozzles spray liquid air blow dry
5	Clean time	3-5 min（solder paste stencil）
6	Dry time	3-5 min（solder paste stencil）
7	Filter system	1mm SUS 304 fliter net—Protect pum；	Liuqid recirculation use
		20um filter bag — for lables, screws;
		1um filter elements— for solder balls,red glue.
8	Air supply	0.5Mpa~ 0.7Mpa
9	Air consumption	400-600L/min
10	Net weight	230Kg
11	Vent size	Φ120xH30mm
12	Machine size	800mm(L)×950mm(W)×1650mm(H)
