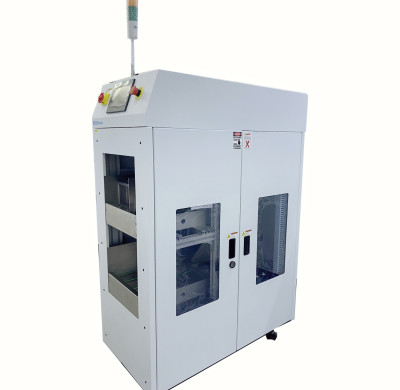

Semi-conductor PCB Loader

Semi-conductor PCB Loader
Semi-conductor PCB LoaderSemi-conductor PCB LoaderSemi-conductor PCB LoaderSemi-conductor PCB LoaderSemi-conductor PCB Loader
CategoriesSemi-conductor Loader & Un-Loader
BrandSAMTRONIK
ModelSMB-3A101M
ConditionNew
Voltage220V
Weight300kg
Dimension(L*W*H)753 x 989 x 1571 (L x W x H) (mm)
CertificationCE
Warrantyone year warranty
After-sales Service ProvidedEngineers available to service machinery overseas
FOB portShenzhen / Hongkong
Terms of PaymentL/C, D/A, D/P, T/T
Update TimeNov 5,2024
Detail Information
High Speed Mini Loader of Semi-conductor



Feature:

 Applicable to various substrates, leadframes or carriers
 ‘Servo control’ lifting motion
 High speed and precise indexing
 Machine size depends on the type of magazine used
 Stores up to 10 different types of magazine dimensions
 Stainless steel magazine guide
 Pneumatic pusher’s pressure regulated
 Easy loading or unloading of magazines
 User friendly touch screen panel
 SMEMA compatible

Size

Model No.

Machine Dimension (mm) L x W x H

Fixed Point to Front Dimension (X)

Weight (Approximately)

M

SMB-3A101M

753 x 989 x 1571

530 mm

300 kg




Specification :


Specification Content
Description  This unit is used for loading of substrates, leadframes or carriers.
Magazine Specify upon order
No. of Magazines Depends on magazine type
Loading Time  Average 5 seconds
Magazine Change-over Time  Average 20 seconds
Indexing Pitch  1 - 4 (5mm pitch) or specify
Power Source  220VAC 1Ph
Power Consumption  850VA max.
Air Pressure  4 - 6 bar
Air Consumption  10 ltr/min. max.
