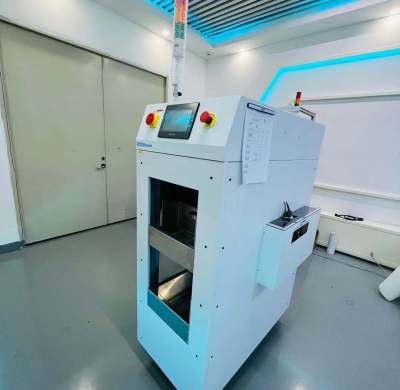

Semi-conductor PCB Unloader

Categories	Semi-conductor Loader & Un-Loader
Brand	SAMTRONIK
Model	SMB-3B101M
Condition	New
Voltage	220V
Weight	300kg
Dimension(LWH)	553 x 956 x 1571 (L x W x H) (mm)
Certification	CE
Warranty	one year warranty
After-sales Service Provided	Engineers available to service machinery overseas
FOB port	Shenzhen / Hongkong
Terms of Payment	L/C, D/A, D/P, T/T
Update Time	Nov 21,2024

Detail Information

High Speed Mini Unloader of Semi-conductor

Feature:

 Applicable to various substrates, leadframes or carriers

 ‘Servo control’ lifting motion

 High speed and precise indexing

 Machine size depends on the type of magazine used

 Stores up to 10 different types of magazine dimensions

 Stainless steel magazine guide

 Pneumatic pusher’s pressure regulated

 Easy loading or unloading of magazines

 User friendly touch screen panel

 SMEMA compatible

Size	Model No.	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
M	SMB-3B101M	553 x 956 x 1571	530 mm	210 kg

Specification :

Specification	Content
Description	This unit is used for loading of substrates, leadframes or carriers.
Magazine	Specify upon order
No. of Magazines	Depends on magazine type
Loading Time	Average 5 seconds
Magazine Change-over Time	Average 20 seconds
Indexing Pitch	1 - 4 (5mm pitch) or specify
Power Source	220VAC 1Ph
Power Consumption	850VA max.
Air Pressure	4 - 6 bar
Air Consumption	10 ltr/min. max.
