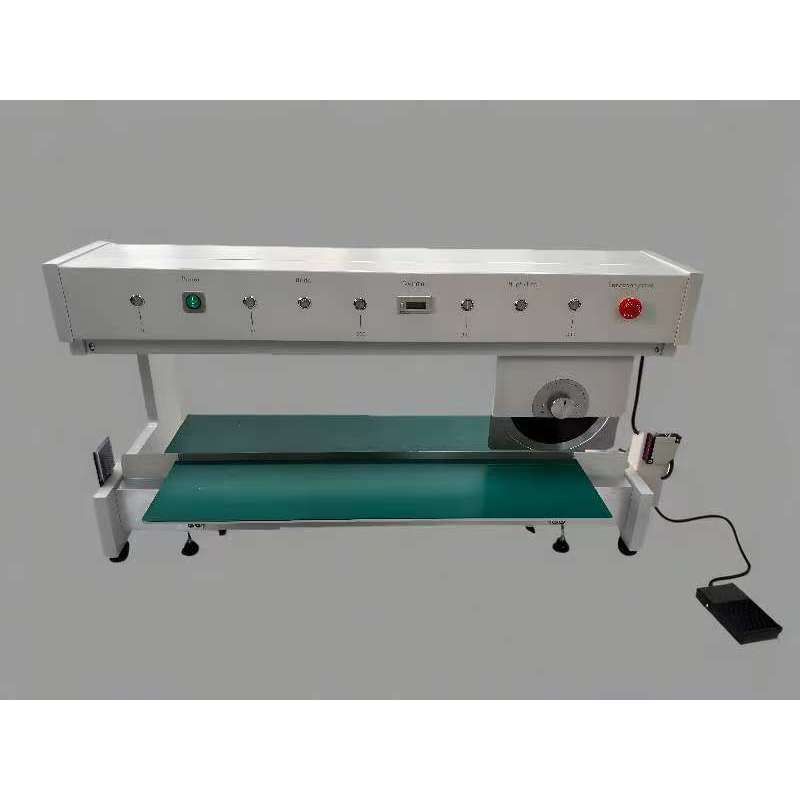

SM-2008B PCB Separator

SM-2008B separates both small and large PCBs fast and economically. To optimize operation,the separation length can be programmed.

Safe operation

The PCB is placed with its pre-scored groove onto the linear blade,when the foot switch is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.Recommended pre-scored grooves.The pre-scored grooves can be interrupted by any number of cut outs.

Features:

SM-2008 separates both small and large PCBs fast and economically. To optimize operation, the separation length can be programmed,Safe operation . The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units. The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.Recommended pre-scored grooves

The pre-scored grooves can be interrupted by any number of cutouts. If components project above the groove,the linear blade needs to be cut out, in such a case, contact us.

• Programmable cutting lengths ranging to 460mm, eliminating time-consuming unnecessary board travel. (Cut length of up to 600mm also available)

• Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.

• Programmable to exact cutting length required.

• Will depanel PCBs with components 1 mm from the score line.

• Quick-lock design for easy circular blade setup to any PCB thickness.

• Hardened tooled steel long-life blades

• Large processing table, which can be angled to permit processed boards to fall away.

• For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.

• Four separating speeds available – adjustable by front rotary knob
